Description

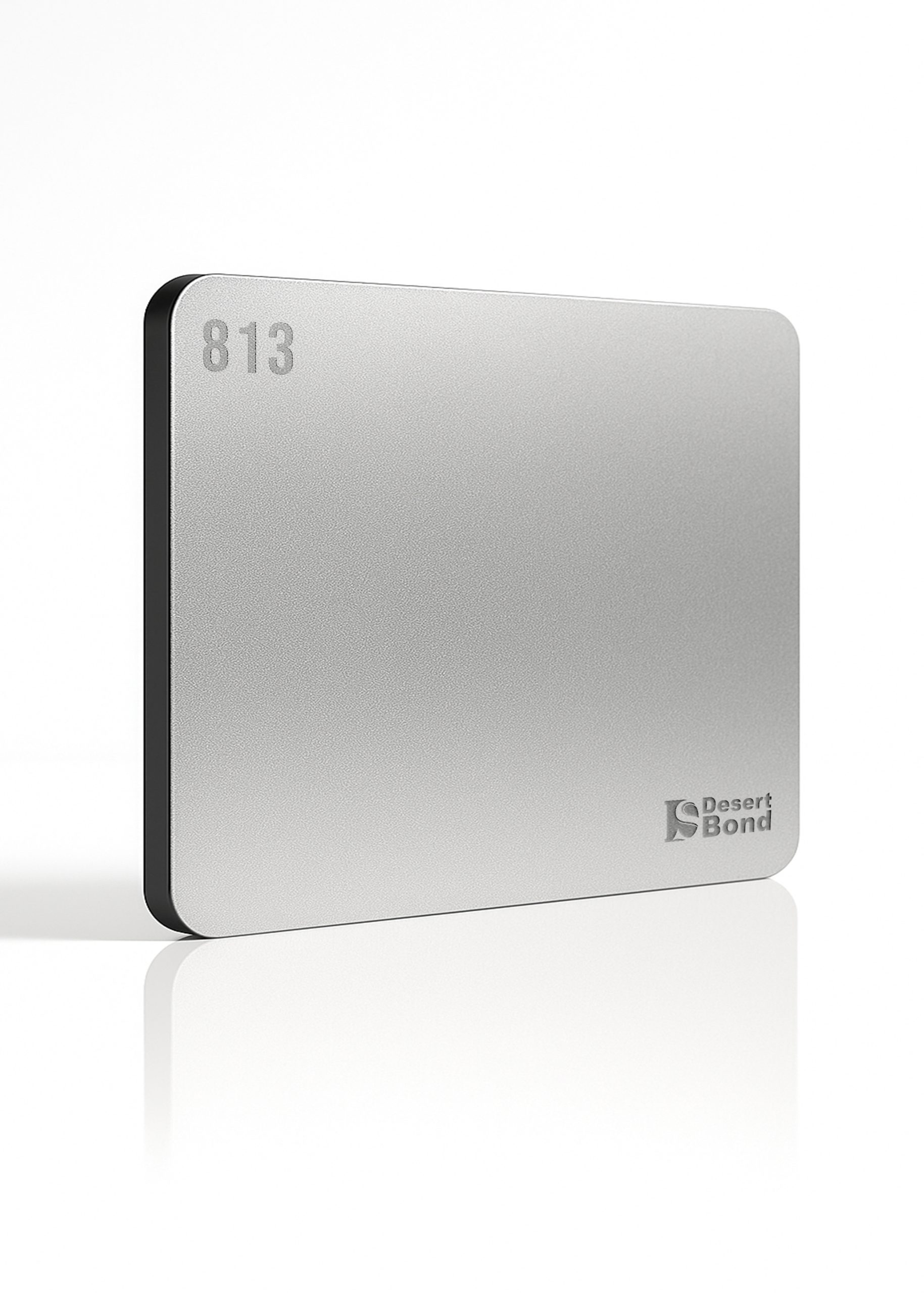

DesertBond Aluminum Composite Panel Sheets – Type A
DesertBond Aluminum Composite Panel Sheets – Type A are high-quality multilayer architectural panels manufactured for façade cladding, signage, and construction applications across the UAE. The panels consist of two coated aluminum skins bonded to a homogenous, fire-retardant core engineered for dimensional stability, rigidity, and surface flatness.
Aluminum composite panels are widely used where lightweight strength, uniform surface finish, and fabrication flexibility are required. Compared to conventional cladding and board materials, ACP sheets offer improved rigidity-to-weight ratio, ease of fabrication, and excellent surface coating performance.
Thickness options, a wide range of color selections, and multiple surface finishes are available as product variants to meet diverse project requirements.
Technical Specifications – Aluminum Composite Panel (Type A)
Panel Structure
| Component | Description |
|---|---|
| Top Layer | Coated Aluminum Sheet |
| Core | Fire Retardant Homogeneous Core (Type A) |
| Bottom Layer | Coated Aluminum Sheet |
General Properties
| Property | Typical Values | Test Standard |
|---|---|---|
| Outdoor temperature resistance | No abnormality | ASTM D1654 / GB/T17748-2008 |
| Thermal expansion | 1.98 × 10⁻⁵ °C⁻¹ | ASTM D696 / GB/T17748-2008 |
| Deflection temperature under heat | 117°C | ASTM D648-01 |
| Thermal conductivity | 0.102 Kcal/m·h·°C | ASTM D976 |
| Minimum bending radius | (LO) 45mm / (PO) 70mm | ASTM D790a |
| Finish coat thickness | 29 μm | ISO 2360 |
| Gloss | 20–85% | ASTM D523 |
Mechanical Properties
| Property | Typical Values | Test Standard |
|---|---|---|
| Flexural rigidity | 14.0 × 10⁵ Kg/mm² | ASTM C393 |
| Flexural elasticity | 4055 Kg/mm² | ASTM D790a |
| Tensile strength | 49.6 MPa | ASTM D638-02 |
| Flexural strength | 108 MPa | ASTM D790-02 |
| Shear resistance | 2.6 Kg/mm² | ASTM D732a |
| Impact resistance | 1.650 Kgf | ASTM D732a |
| Adhesive strength | 0.78 Kg/mm | ASTM D903a |
| 180° Peel strength | 10.7 N/mm | ASTM D903 |
| Pencil hardness | 3H | ASTM D3363-74 |
| Abrasion resistance | 64.5 L/mil | ASTM D968-81 |
Fire & Safety Properties
| Property | Typical Values | Test Standard |
|---|---|---|
| Fire propagation | Class B1 | ASTM E84a |
| Smoke developed | <45 | ASTM E84a |
| Reaction to fire | Type A (Standard Core) | GB/T17748-2008 |
Environmental & Durability Properties
| Property | Typical Values | Test Standard |
|---|---|---|
| Wind-pressure resistance | Passed | ASTM E330 |
| Water resistance | Passed | ASTM E331a |
| Air resistance | Passed | ASTM E283a |
| Humidity resistance | 3000 hrs no blister | ASTM D2247-87 |
| Salt-spray resistance | 3000 hrs no blister | ASTM D117-94 |
| Acid resistance | No color change after 48 hrs | ASTM D2244 |
| Temperature resistance | No surface change (-40°C to 80°C) | GB/T17748-2008 |
| Chalk resistance | No chalk | ASTM D4214-89 |
| Gloss retention | 0.85 | ASTM D2244-85 |
Available Variants
DesertBond Aluminum Composite Panel Sheets – Type A are available in:
-
Multiple panel thickness options
-
Various aluminum skin thickness combinations
-
Wide selection of solid, metallic, matte, brushed, and specialty finishes
-
Standard and custom color options
Variants can be selected within the same product configuration to suit design intent and fabrication requirements.
Key Features & Properties
-
Lightweight and rigid composite panel
-
Smooth, flat surface with uniform coating
-
Suitable for cutting, routing, bending, and fabrication
-
Excellent surface quality and finish retention
-
Weather-resistant coated aluminum skins
-
Suitable for interior and exterior architectural use
Applications in UAE Projects
DesertBond Aluminum Composite Panel Sheets – Type A are commonly used in:
-
Building façade cladding and elevations
-
Architectural feature panels and column covers
-
Retail storefronts and mall interiors
-
Signage panels and advertising structures
-
Petrol station cladding and canopies
-
Exhibition stands and display fabrication
-
Ceiling and internal partitions
These panels are widely used in residential, commercial, and industrial projects across Dubai, Abu Dhabi, Sharjah, and other Emirates.
Suitable for B2B & Retail Supply
DesertBond Aluminum Composite Panel Sheets – Type A are supplied to:
-
Façade and cladding contractors
-
Signage and advertising fabricators
-
Construction and interior fit-out contractors
-
Maintenance and renovation projects
-
Retail customers for general fabrication needs
Panels are available in standard sheet dimensions, multiple thickness options, and various finishes to suit fabrication and installation requirements.
Material Performance for UAE Conditions
Aluminum Composite Panel Sheets – Type A offer reliable structural performance and coating stability suitable for UAE environmental conditions. DesertBond panels are engineered to withstand temperature extremes, humidity, and outdoor exposure when installed in accordance with recommended practices.
The panels maintain surface finish integrity, dimensional stability, and mechanical resilience over time.
Supply & Availability
-
Supplied in standard sheet dimensions
-
Available for project and retail bulk quantities
-
Multiple thickness, finish, and color variants stocked
-
Consistent UAE stock availability
-
Technical support available for material selection and specification
