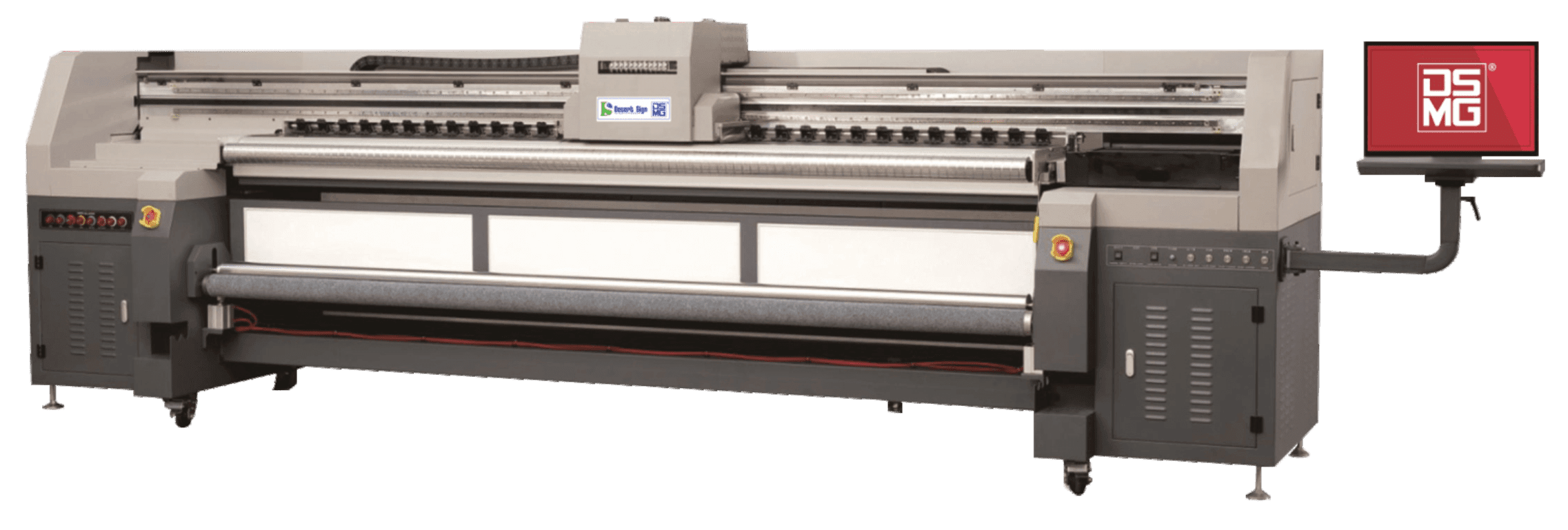

TAIMES T8UV High Speed Web UV Printer
Product Details
Machine Applications
Use this equipment for signage production, printing, cutting, engraving, fabrication, and industrial workflows.
| PRODUCT | ||||
|---|---|---|---|---|
| Printhead | High Speed Mode | Standard Mode | High Quality Mode | Ink Color |
| KM 1024i-13PL 4/5/6/7/8Heads |
540x720dpi 4pass 50sqm/h |
540x1080dpi 6pass 40sqm/h |
540x1440dpi 8pass 30sqm/h |
● ● ● ● |
| Technical Specification | |
|---|---|
| Print Control | |
| Print Technology | KM1024i Print Head |
| Ink Type | UV Solvent / Flexible UV ink |
| Rip Software | Photoprint, Maintop |
| Color Configuration | 8 Color (C / M / Y / K / LM / W / V) |
| Operating System | Win 7/10 64 bits |
| Image Format | TIFF / JPEG / EPS / PDF |
| Printhead Height | 2 ~ 8mm Above Media Adjustable |
| Media Type | Vinyl, Flex, Polyester, Back-lit Film, Window Film, etc. |
| Media Type | Maximum Media Width 3,300mm (10.8ft) |
| Printing Width | 3200mm, Maximum Print Width 3,200mm (10.5ft) |
| Maximum Weight System | Panel: ≤ 45 / m |
| Printing Drying System | |
| UV Curing Lamp | UV Curing Lamp |
| Data Interface | |
| Data Interface | Hi – Speed USB 2.0 |
| Power Supply | |
| Maximum Power | 7.5KW |
| Access Parameter | AC220V, 50HZ / 60HZ |
| Working Conditions | |
| Humidity | 40% – 60% |
| Temperature | 20℃ – 28℃ |
| Specification | |
| Machine Dimension / Weight | 5720*1030*1480mm (L*W*H) NW : 970KG |
| Package Dimension / Weight | 5300*1150*1700mm (L*W*H) GW : 1170KG |
TAIMES T8UV High Speed Web UV Printer in Dubai, UAE
TAIMES T8UV High Speed Web UV Printer is a signage and printing material available from Desert Sign Trading LLC for sign makers, printing companies, retail branding teams, exhibition contractors, and display fabricators in Dubai and across the UAE. It is suitable for professional signage, branding, display, advertising, and indoor or outdoor visual communication projects where reliable material quality and consistent supply matter.
Applications
Use this product for Machines, shop signage, wall graphics, window branding, display stands, light boxes, digital signage, acrylic fabrication, vehicle graphics, labels, stickers, and custom advertising projects depending on the selected material type. For bulk supply, project requirements, and product availability in Dubai, contact Desert Sign Trading LLC.
