Description

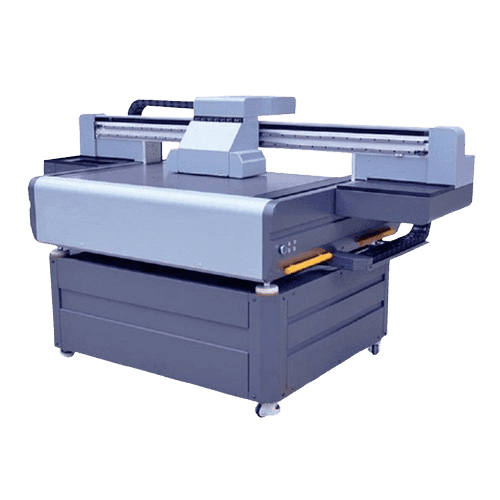

TAIMES UV9060
Product Details
Key Applications
Use this product for signage, branding, display, fabrication, printing, and commercial projects.
| Product Model | TF 9060 | TF 9060V |
|---|---|---|
| Printhead | TOSHIBA-CE4-3H | TOSHIBA-CE4-5H |
| High speed mode | Weak Gradient 600x900dpi 4pass 7.4sqm/h |
Weak Gradient 600X900dpi 4pass 7.4sqm/h |
| Standard mode | Weak Gradient 600x1200dpi 6pass 6.8sqm/h |
Weak Gradient 600X1200dpi 6pass 6.8sqm/h |
| High-quality mode | Weak Gradient 600x1800dpi 8pass 4.4sqm/h |
Weak Gradient 600x1800dpi 8pass 4.4sqm/h |
| Technical Data | |
|---|---|
| Print Control | |
| Print Technology | Industrial piezoelectric inkjet |
| Ink Types | Environmental protective UV ink |
| RIP Software | Ultra Print |
| Colour Configuration | C/M/Y/K/LC/LM/W/V |
| Operating System | Win7/10 64bits |
| Image Format | TFF/JPEG/EPS/POF/N |
| Printhead Height | 2-80mm Above Media Adjustable |
| Media Type | Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc. |
| Maximum Media Wath | Planet 000mm (width) x 600mm (depth) |
| Maximum Printing Area | Panel 900mm (width) x 600mm (depth) |
| Maximum Weight of Material | Bread: 45 kg/m² |
| Printing Drying System | |
| UV Curing Lamp | LED-UV A pair |
| Interfaces | |
| Data Interface | H-USB2.0/3.0 |
| Specification | |
| Machine Dimension/Weight | L2,080×W1,000×H1,100mm/Net Weight 150KG |
| Package Dimension/Weight | L2,250×W1,310×H1,050mm/Gross Weight 180KG |
| Working Conditions | |
| Humidity&Temperature | 15-30°C 30-70% Separated workroom in good deaning and ventilated condition |
| Operating Noise | <80dB |
| Power Supply | |
| Maximum Power | >15A, 25KW |
| Access Paramete | AC 50HZ/602, 220v (±10%) |
TAIMES UV9060 in Dubai, UAE
TAIMES UV9060 is a signage and printing material available from Desert Sign Trading LLC for sign makers, printing companies, retail branding teams, exhibition contractors, and display fabricators in Dubai and across the UAE. It is suitable for professional signage, branding, display, advertising, and indoor or outdoor visual communication projects where reliable material quality and consistent supply matter.
Applications
Use this product for Machines, shop signage, wall graphics, window branding, display stands, light boxes, digital signage, acrylic fabrication, vehicle graphics, labels, stickers, and custom advertising projects depending on the selected material type. For bulk supply, project requirements, and product availability in Dubai, contact Desert Sign Trading LLC.
